E-comfort instant water heater
DSX Twin

Energy efficiency class A

(Scale: A+ to F)

DSX Twin: 2 × 18/21/24/27 kW, 2 × 400 V

Technical data
Downloads

This is where the DSX Twin is used.

Shower in spa area
Wellness shower
Bath tub

For maximum shower convenience.

This solution combines two E-comfort instantaneous water heaters to supply one or more tap points with high hot water requirements (minimum flow rate per single tap: 6 l/min), e.g. a wellness shower. The devices are synchronised via the special Twin software, temperature settings are automatically taken over by both devices.

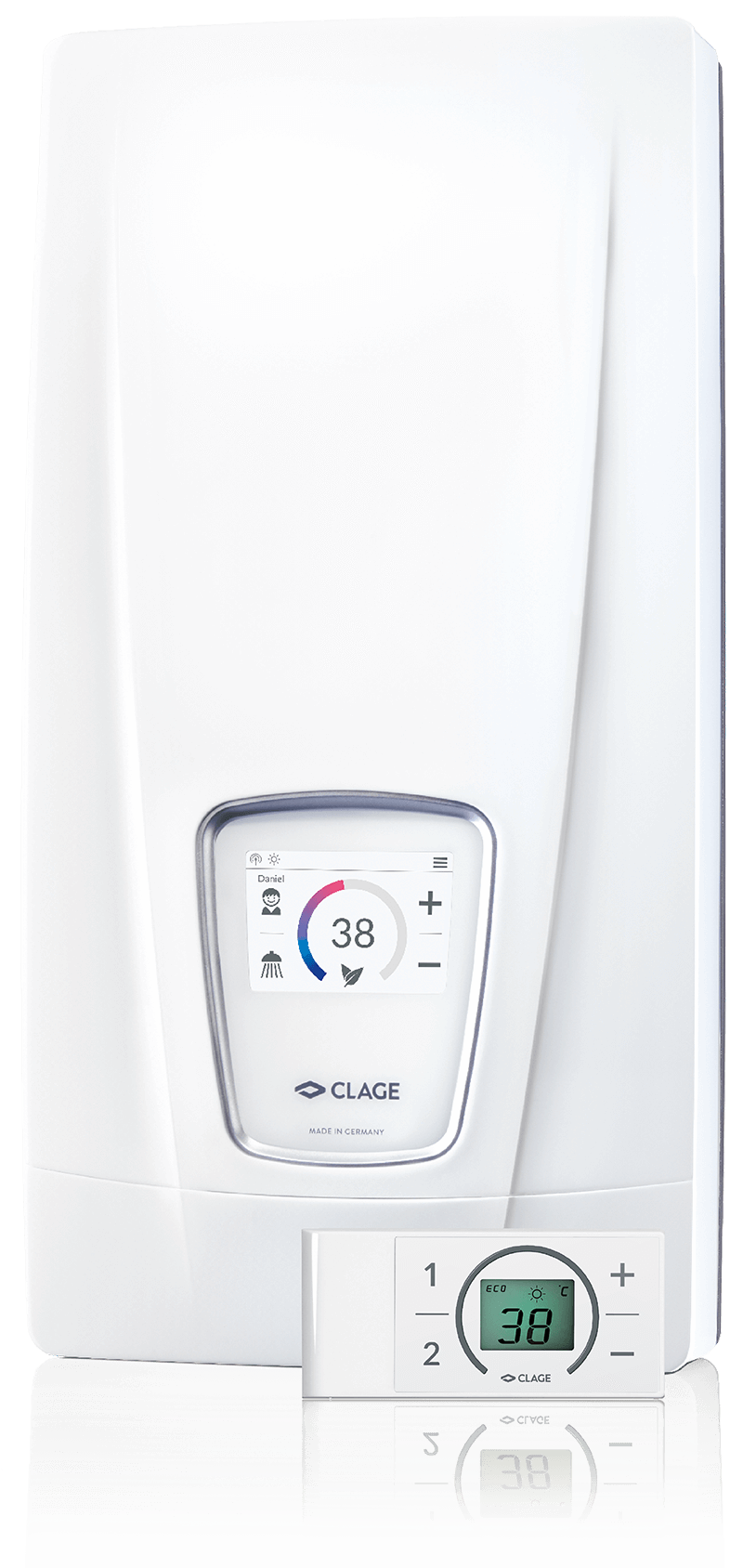

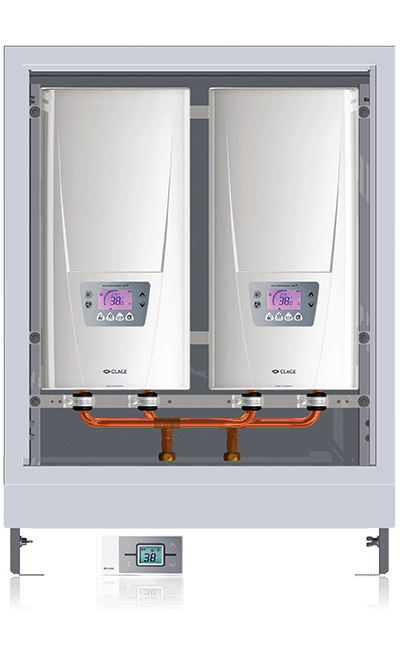

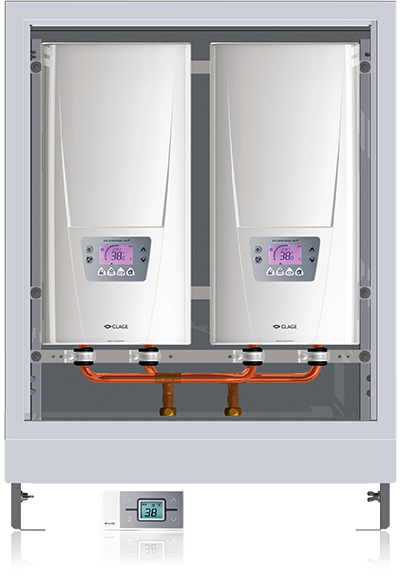

Complete set of two fully electronically controlled high-tech instantaneous water heaters DSX with a special installation frame and remote control
With special piping set and mounting material for inside wall mounting
Depending on the set nominal output (kW) of the DSX units, the flow rate is doubled.
Always precise temperatures between 20 °C and 60 °C thanks to TWIN TEMPERATURE Control TTC^® and dynamic flow rate control SERVOTRONIC^®.
Cabinet dimensions (height × width × depth): 81.6 × 60.3 × 14 cm

Technical data

Data. Values. Facts.



DSX Twin

Part number

Nominal power rating ¹⁾ (variably adjustable due to MPS) [kW]

Maximum operating pressure [MPa (bar)]

Water connections (thread connections)

Hot water output at Δt = 28 K ²⁾ [l/min]

Hot water output at Δt = 38 K ³⁾ [l/min]

Switch-on flow rate [l/min]

Maximum flow rate: automatic [l/min] ⁴⁾

Supply voltage [3~ / PE 400 V AC] two permanent connections

Nominal current [A]

Required cable diameter [mm²]

Maximum inlet temperature [°C]

Solar-ready ⁵⁾

Protection class

Specific water resistance at 15 °C [Ωcm] ≥

Weight filled with water [kg], approx.

3200-34130
2 × 18	2 × 21	2 × 24	2 × 27
1 (10)	1 (10)	1 (10)	1 (10)
G ½"	G ½"	G ½"	G ½"
2 × 9.2	2 × 10.7	2 × 12.3	2 × 13.8
2 × 6.8	2 × 7.9	2 × 9.0	2 × 10.2
5	5	5	5


2 × 26	2 × 30	2 × 35	2 × 39
2 × 4.0	2 × 4.0	2 × 6.0	2 × 6.0
70	70	70	70

IP 25	IP 25	IP 25	IP 25
1100	1100	1100	1100
21	21	21	21

1) The selected power rating determines the values of nominal current, cable diameter and hot water output

2) Temperature increase e.g. from 12 °C to 40 °C

3) Temperature increase e.g. from 12 °C to 50 °C

4) Depending on line pressure, selected temperature and inlet temperature

5) Suitable for reheating

Downloads

Media	Title	Date	Size

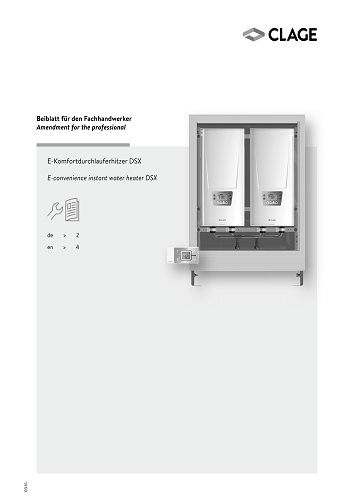

DSX Twin Installation Instruction Booklet	Installation Instruction Booklet.pdf	01.01.2021	6,7 MB > download

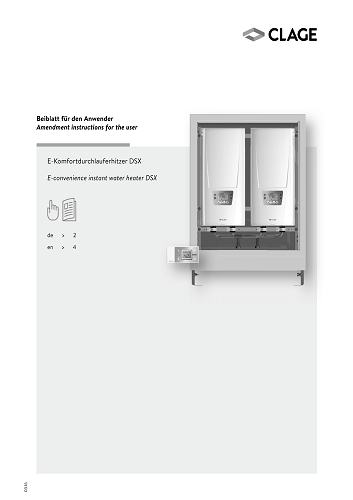

DSX Twin Operating Instruction Booklet	Operating Instruction Booklet.pdf	01.01.2021	6,7 MB > download

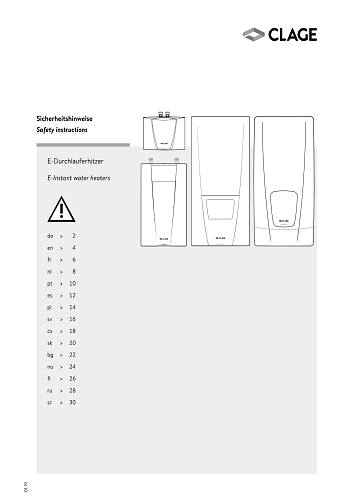

DSX Twin Safety Instructions	Safety Instructions.pdf	01.01.2021	759 kB > download
DSX Twin Technical Data Sheet.pdf	DSX Technical Data Sheet.pdf	01.01.2021	6,7 MB > download
