Vortice Vario

Wall/Window Performance Axial Fan LONG LIFE 30.000 h

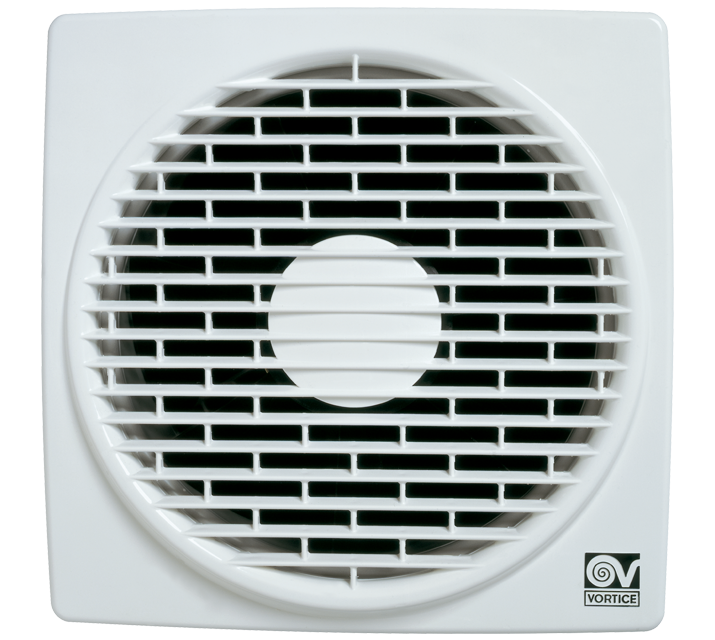

  • VORTICE 230/9" AR
  • VORTICE 230/9" AR-LL-S

This is where the Vortice Vario is used.

  1. Wash hand basin <nobr>(e.g. guest toilet)</nobr>

    Kitchen

  2. Staff kitchen

    Dwellings

  3. Staff kitchen

    Public Houses

  4. Staff kitchen

    Offices

  5. Staff kitchen

    Shops & Cafes

  6. Staff kitchen

    Sports Centre

Description & Certifications.

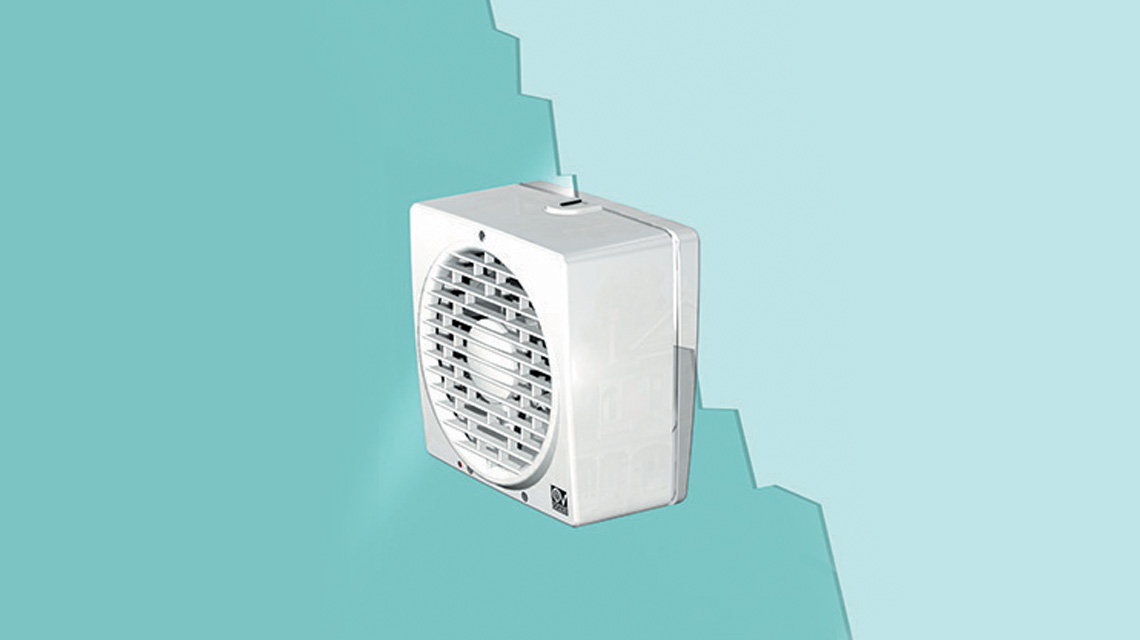

Manual and automatic version unidirectional and reversible axial fans, designed for wall or glass installation in domestic or commercial premises subjected to heavy-duty daily use.

Key Features

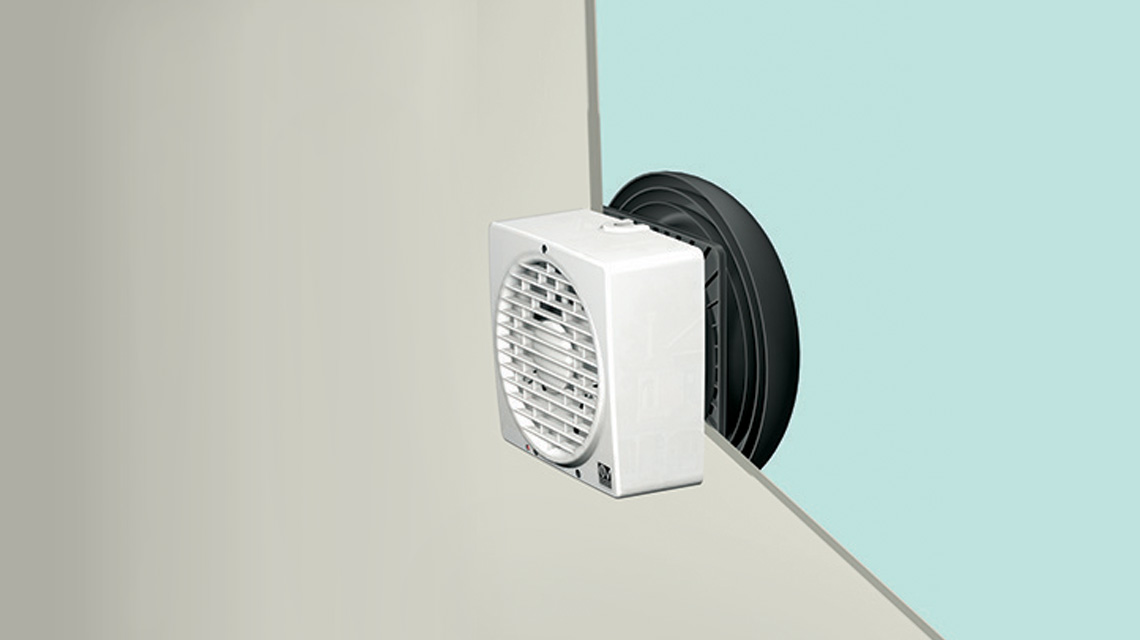

  • > Wide range of possible alternative installations (windows, walls, false-ceilings, roofs, dark rooms, etc.) thanks to the optional accessories available.
  • > Easy, fast installation
  • > Elegant, “Intel Design” and “Design Index Adi” award-winning design.
  • > Suitable for bathroom installation.

Version

  • > 2 models, with nominal diameter 230 mm, in unidirectional and reversible versions, driven by bushing and bearing motors, with manual and automatic drive closing fins.

  • IMQ IMQ
  • CE CE
  • IMQ Performance IMQ Performance
  • C Tick Mark C Tick Mark
  • EAC EAC
  • G-Mark G-Mark

Technical features

  • > White, shock-proof, plastic resin (ABS) panels, prevents ageing caused by exposure to sunlight (“UV resistant”).
  • > Heat protected motors with shafts mounted on bushings with self-centring and self-lubricating neck to favour low sound emissions, or on ball bearings (LL models to ensure long lasting (at least 30,000 h) continuous service at the maximum plate temperature. Speed adjustment using Vortice accessory devices. The direction of rotation can be reversed (R models) to perform the double function of extracting stale air and introducing fresh air into the serviced room.
  • > Axial impellers moulded in plastic resin, resistant to aggressive agents, with saber shaped blades to combine high performance with low noise emissions.
  • > Exhaust duct closing fins to prevent unwanted inflows of air and bad odours when the device is switched of, automatic drive on A models.
  • > Possibility of combining with a timer and temperature, relative humidity, smoke and presence sensors (optional).
  • > Fully compliant with Reg. No. 327/2011/EU.
  • > Performance and safety certified by third party body (IMQ)
  • > Protection rating from dust and water: IPX4.
  • > Class of electric isolation: II (earthing not required).

Technical data

>
























230/9" AR 230/9" AR-LL-S
Absorbed Current max (A)
Absorbed Power max (W)
Frequency (Hz)
Inlet
Insulation Class
IP
Max absorbed Power at 60Hz (W)
Max ambient temperature for continuous operation (°C)
Max ambient temperature for continuous operation 60Hz (°C)
Ø Discharge Hole (mm)
Voltage (V)
Weight (Kg)
Delivery max - Extract (l/s)
Delivery max - Extract (m3/h)
Delivery max - Intake (l/s)
Delivery max - Intake (m3/h)
Delivery max (m³/h)
RPM
Rpm - Exhaust
RPM - Supply

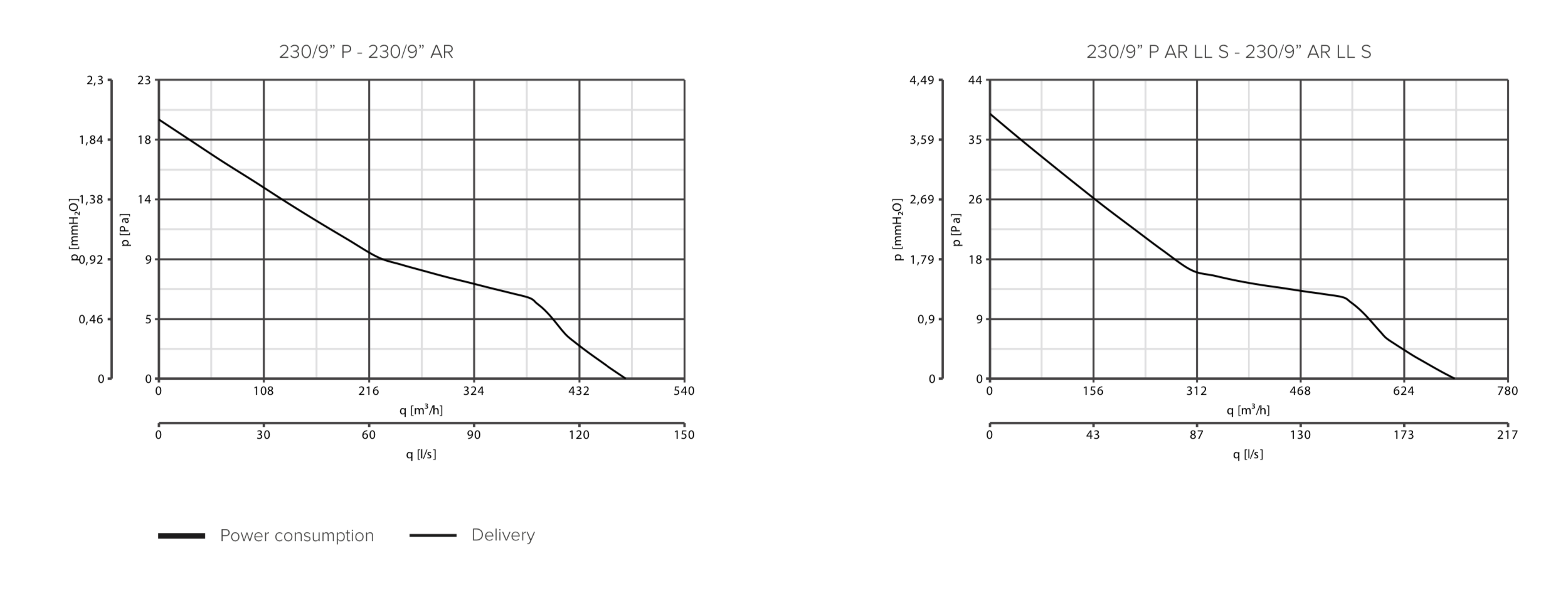

Sound Pressure level Lp [dB (A)] 3m
0,13 0,19
26 35
50-60 50-60
Automatico Automatico
II° II°
X4 X4
26 40
50 50
50 50
230 230
220-240 220-240
3,45 3,45
133 194,4
480 700
86 102,8
310 370
480 700
790 1200
790 1200
1080 1300
35,6 43,6
  • Ø glass hole
    257/262
  • Ø wall hole
    257/262

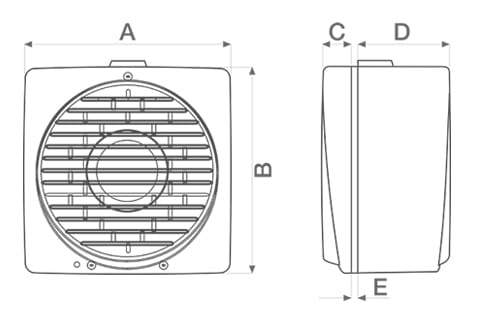

  • Size A (mm)
    294
  • Size B (mm)
    297
  • Size C (mm)
    31
  • Size D (mm)
    130
  • Size E (mm)
    2/38

Downloads

>

Media Title Date Size

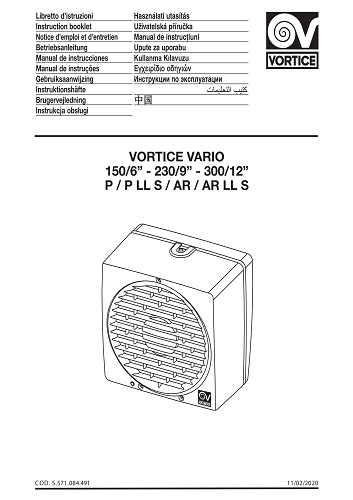

Instruction Booklet Instruction Booklet.pdf 01.01.2021 759 kB
> download

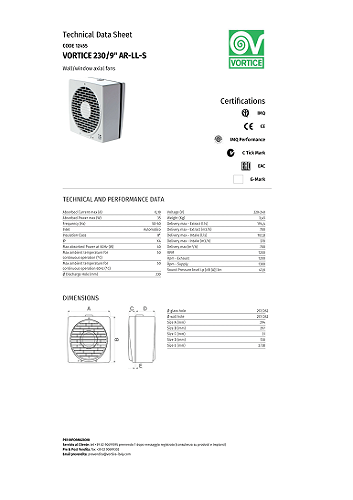

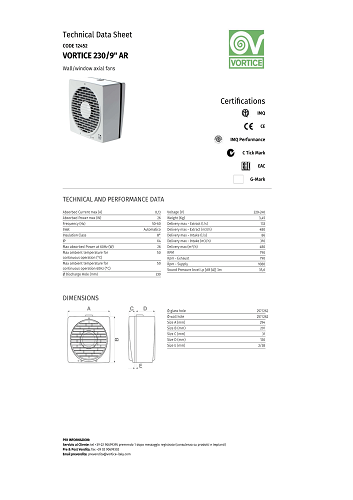

Technical Data Sheet Technical Data Sheet.pdf 01.01.2021 6,7 MB
> download

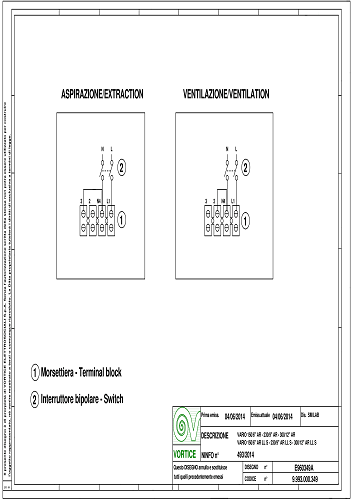

Wiring Diagram Wiring Diagram.pdf 01.01.2021 6,7 MB
> download
AR LL Instruction Booklet Instruction Booklet.pdf 01.01.2021 759 kB
> download
AR LL Technical Data Sheet Technical Data Sheet.pdf 01.01.2021 6,7 MB
> download
AR LL Wiring Diagram Wiring Diagram.pdf 01.01.2021 6,7 MB
> download

Accessories

>

CSP 3

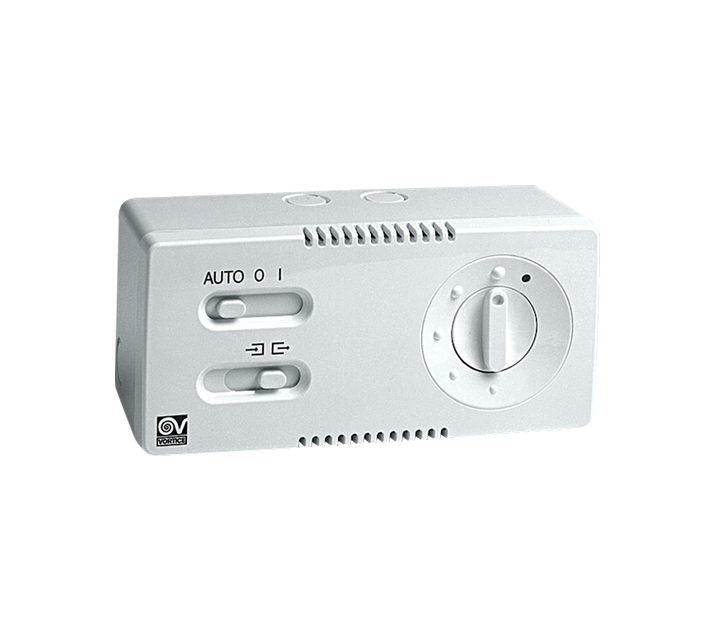

CREN

• Variable electronic speed controller.
• Reversible.
• Natural Ventilation.
• Maximum load 1,2 A.

CSP 6

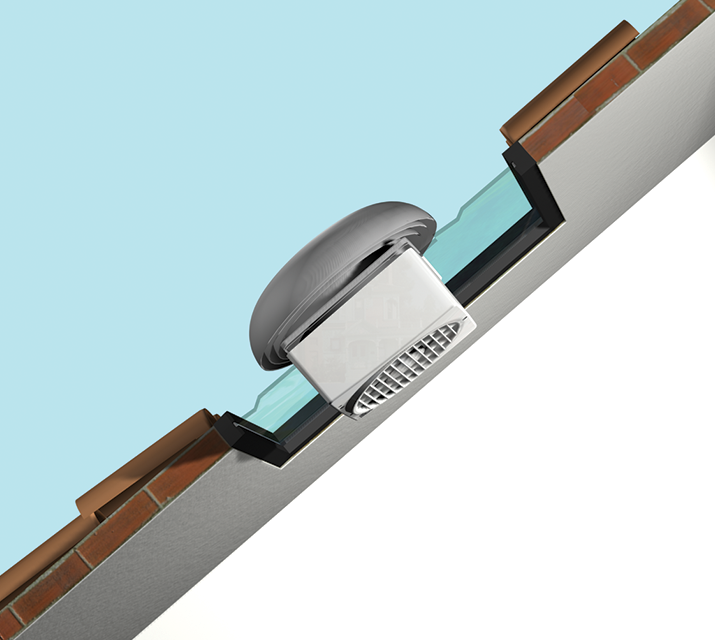

KIT 230/9" (Torretta)

• Roof cowl/wind baffle kit.

FVS

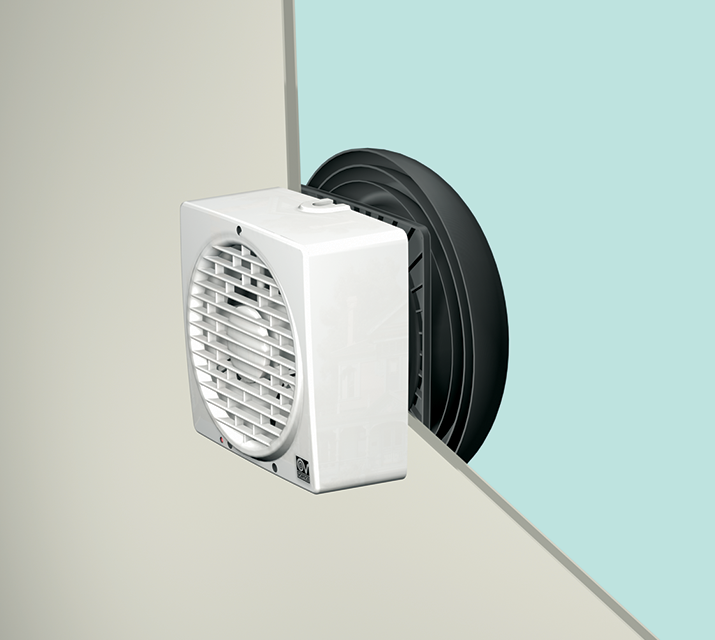

KIT SA 230/9' (Schermo Antiluce)

• Darkroom cowl kit.

T-piece

KIT MU (MURO)

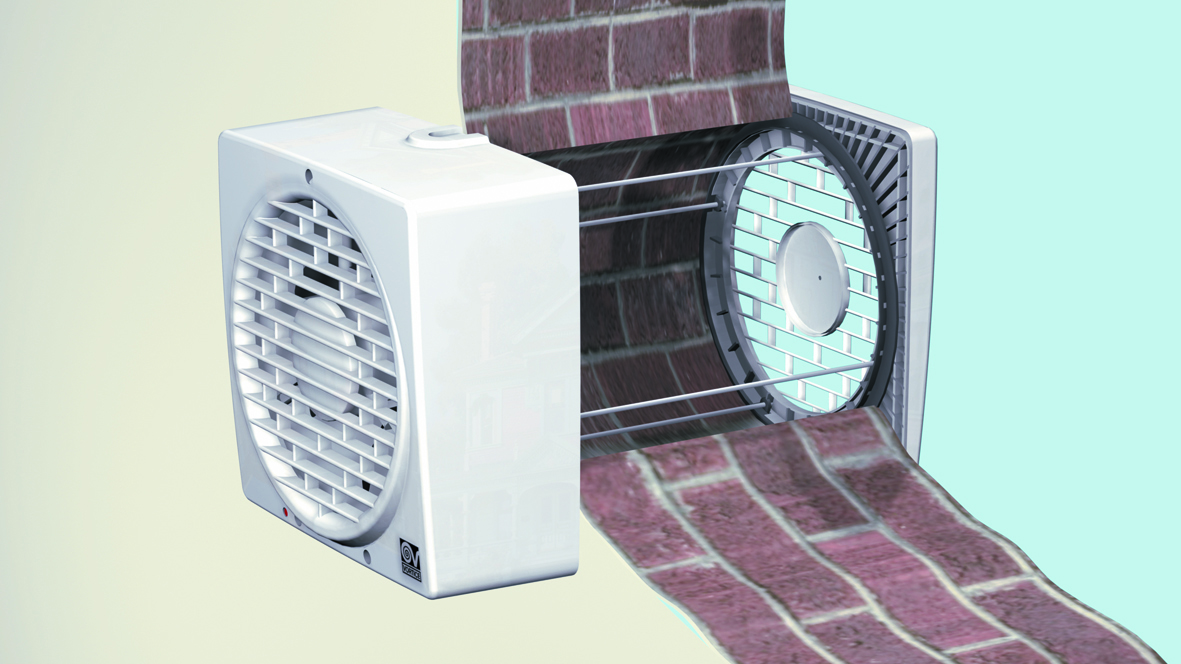

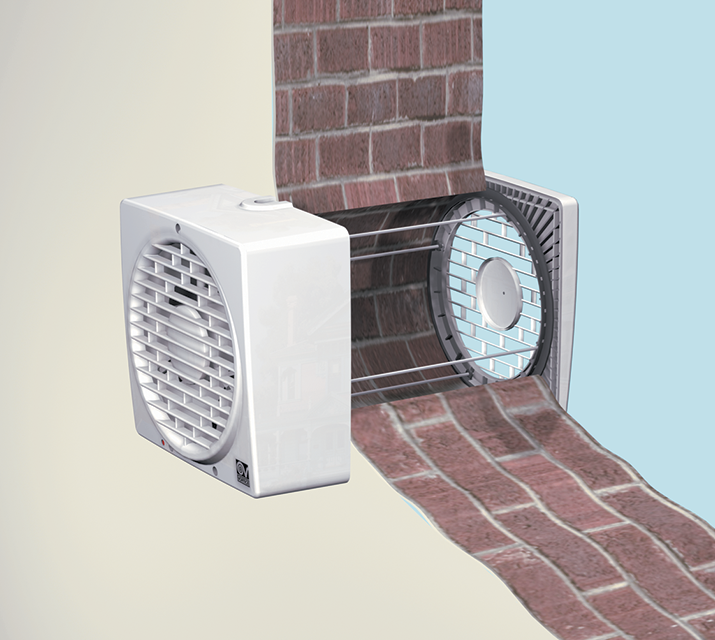

• Wall mounting kit with rods.
