Helios ELS Ultrasilence

Monotube Ventilation

  • ELS VN-100/60
  • ELS VP-100/60
  • ELS VF-100/60/35

Interesting features.

  1. 100% Powerful

  2. 100% Quiet

  3. 100% Attractive

  4. 100% Compact

  5. 100% Environ-mentally Friendly

  6. 100% Made in Germany

Description.

  • > Powerful: ultraSilence® ELS truly generates pressure. 260 Pa at 60 m3/h, in fact. This is not only record-breaking, it also allows the smallest pipe cross-sections for the main line and thereby increases the possible living space. Quiet: With so much power, it is quite astonishing that ultraSilence® ELS is so quiet. 35 dB(A) at V· = 60 m3/h* is on the threshold of audibility and a value that nobody will beat. *(LPA at AL = 10 m2)
  • > Attractive: Best design at any price: ultraSilence® ELS is unique and has received globally recognised awards.
  • > Compact: The special achievement of a product sometimes lies in offering less: for example, with regard to the dimensions. In this respect, ultraSilence® ELS also holds the record with an installation depth of just 89 mm.

  • > Unique: The impeller developed by Helios generates a lot of pressure almost inaudibly.
  • > Barrierfree and fully Automatic: the ELS types operate with motion sensors or automatic humidity controls
    All ELS types are equipped with a permanent filter, which can be easily cleaned in the dishwasher.
    ELS is optimally protected against humidity: Installation in wet room zone 1 according to DIN VDE 0100-701 is possible without difficulty.
    The ELS ultrasilence can be connected to multiple areas as well as the WC
  • > Made in Germany: There is no substitute for quality and innovative strength. The Helios brand stands for both like no other. Thus, our mono tube ventilation systems, from the motor and control technology through to the impeller, are completely developed and produced in Germany. You can count on this.

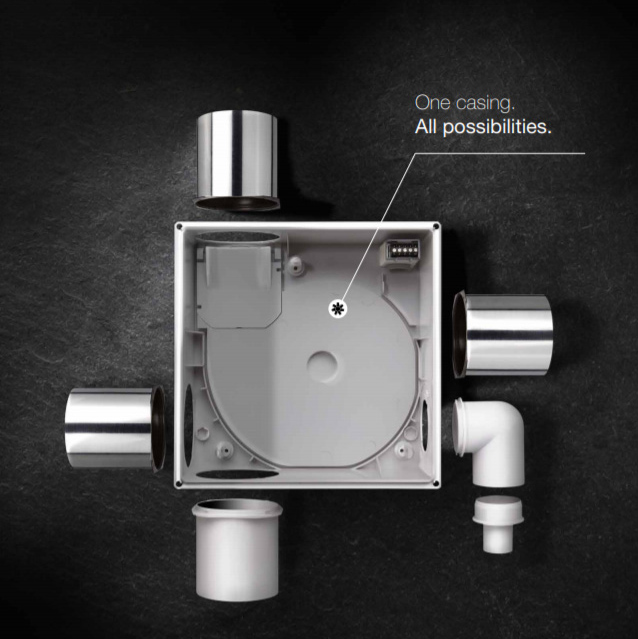

The flush-mounted casing ELS-GU is not only delightfully compact, but also almost infinitely flexible in application. Whether it is used for single room and two room ventila- tion or WC connection via the flush pipe – ELS-GU fits optimally in all situations. Installation is possible in walls, shafts, plas- terboards or ceilings, whereby the discharge spigots can be optionally positioned to the back or top. Furthermore, the casing can be rotated by 90° to the left or right. Simple and without tools. There is just one casing type for each type of installation and all ventilation require-ments, which is not only practical on the construction site, but also extremely economical for storage.

1 Single room ventilation Intake via front facade.

2 Two room ventilation Two room ventilation with discharge to top or back.

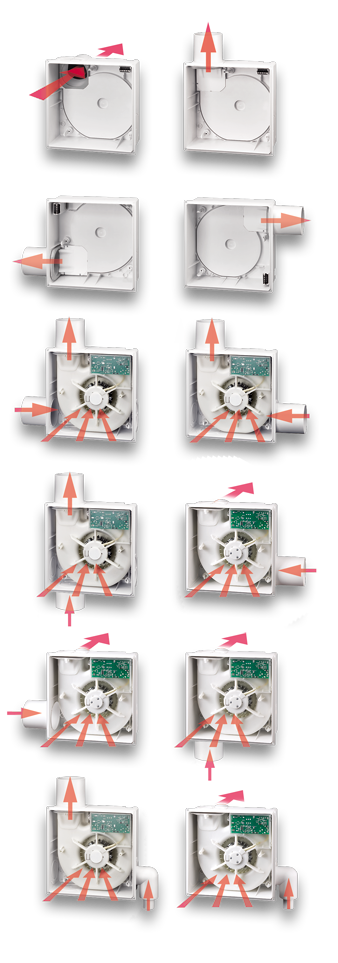

3 WC connection WC seat connection via flush pipe, discharge to top or back. The flush-mounted casings from ultraSilence ® ELS are just as smart. ELS-GAP and ELS-GAPB with the fire protection damper can be mounted by turning the discharge spigots by 360°, so that the air outlet can be positioned to the top left or right and bottom left or right.

Technical data

>
























ELS-VN 100/60 ELS-VP 100/60 ELS-VF 100/60/35
Ref. no
Area of application
Flow rate in m³/h
Power consumption in Watts
Sound pressure dB(A)*: Flush
Sound pressure dB(A)*: Surf
Sound power L WA dB(A): Flush
Sound power L WA dB(A): Surf
ELS with adjustable overrun Timer ELS with motion sensor ELS with Humidity Sensor
08141 08150 / 08149 08166
Bathroom and WC, kitchen Bathroom and WC, kitchen Bathroom and WC, kitchen
100/60 100/60 100/60/35
29/18 29/18 29/18/9
47/35 47/35 47/35/26
51/39 51/39 51/39/30
51/39 51/39 51/39/30
55/43 55/43 55/43/34

ELS GU casing Front

ELS ZS Second Room Kit

ELS front Facia

ELS GU casing-back

Downloads

>

Media Title Date Size

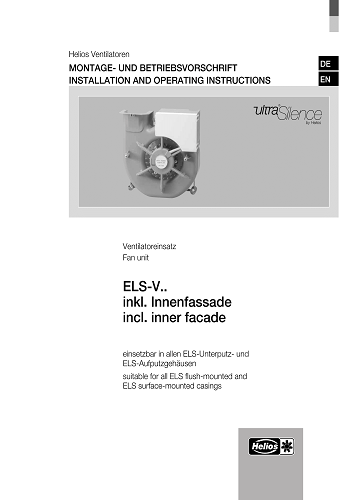

Operating and Installation Booklet Instruction Booklet.pdf 01.01.2021 759 kB
> download
Helios ELS Catalogue Helios ELS Catalogue 01.01.2021 6,7 MB
> download

Accessories

>

CSP 6

Second room kit

Extract air unit for flush-mounted installation for connection to all casings for second room connection ELS-GU. Award-winning design facade in alpine white, with closed front and all-round air inflow. Integrated, easily accessible air filter. Includes second room connection spigots for fan casings ELS-GU and -GUBA.

FVS

Second room connection spigots

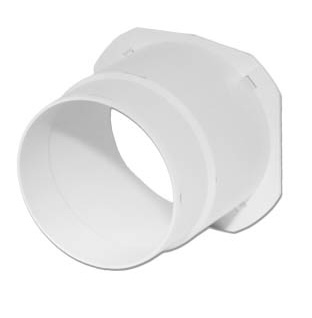

Spigots for casing types ELS-GU and -GUBA. For the connection of second room extraction on site. NW 75/80 mm

FVS

WC connection kit

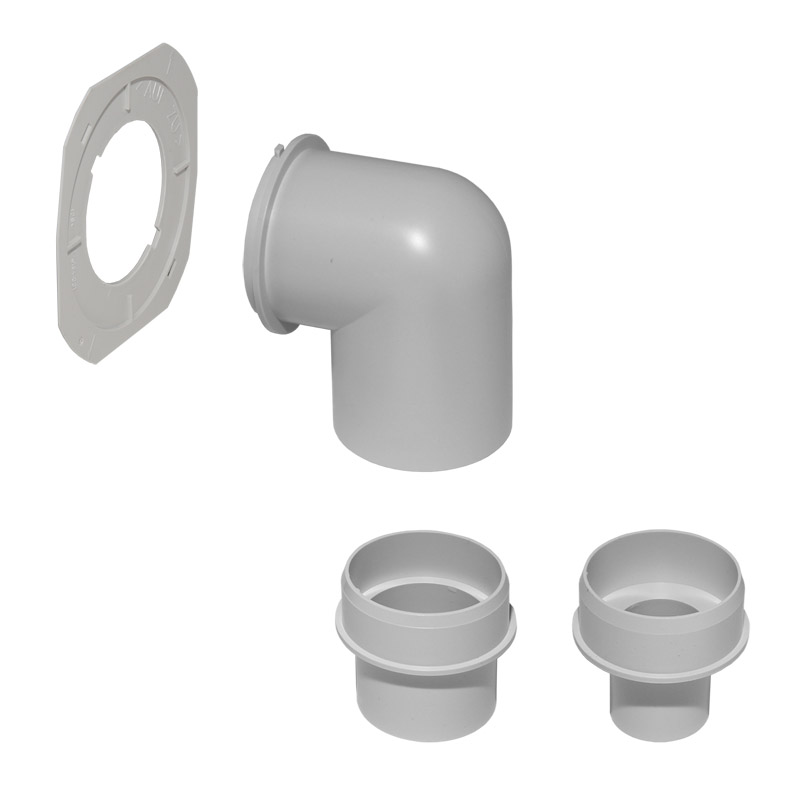

Kit for connecting WC extraction in combination with the room ventilation; for casing types ELS-GU, -GUBA. The fan casing and cistern pipe are connected with commercially available HT pipes. Scope of delivery: Connecting panel, 90° angle, 2 stepped spigots Ø 40 and 30 mm

Interesting features.

  1. Permanent Filter

  2. Adjustable Overrun Timer

  3. Automatic Humidity Control




  4. Motion Sensor

  5. Multi-Zone Ventilation

  6. WC Connection
