E-mini instant water heater
MCX

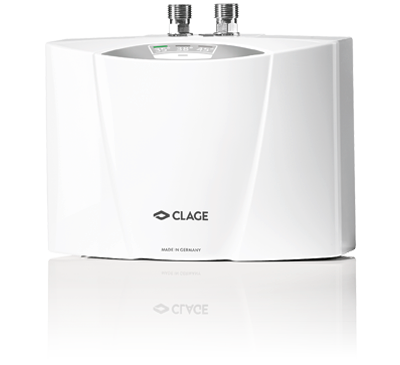

E-mini instant water heater MCX

Energy efficiency class A

(Scale: A+ to F)

  • MCX 3: 3.5 kW, 230 V
    with plug
  • MCX 4: 4.4 kW, 230 V
  • MCX 6: 5.7 kW, 230 V

This is where the MCX is used.

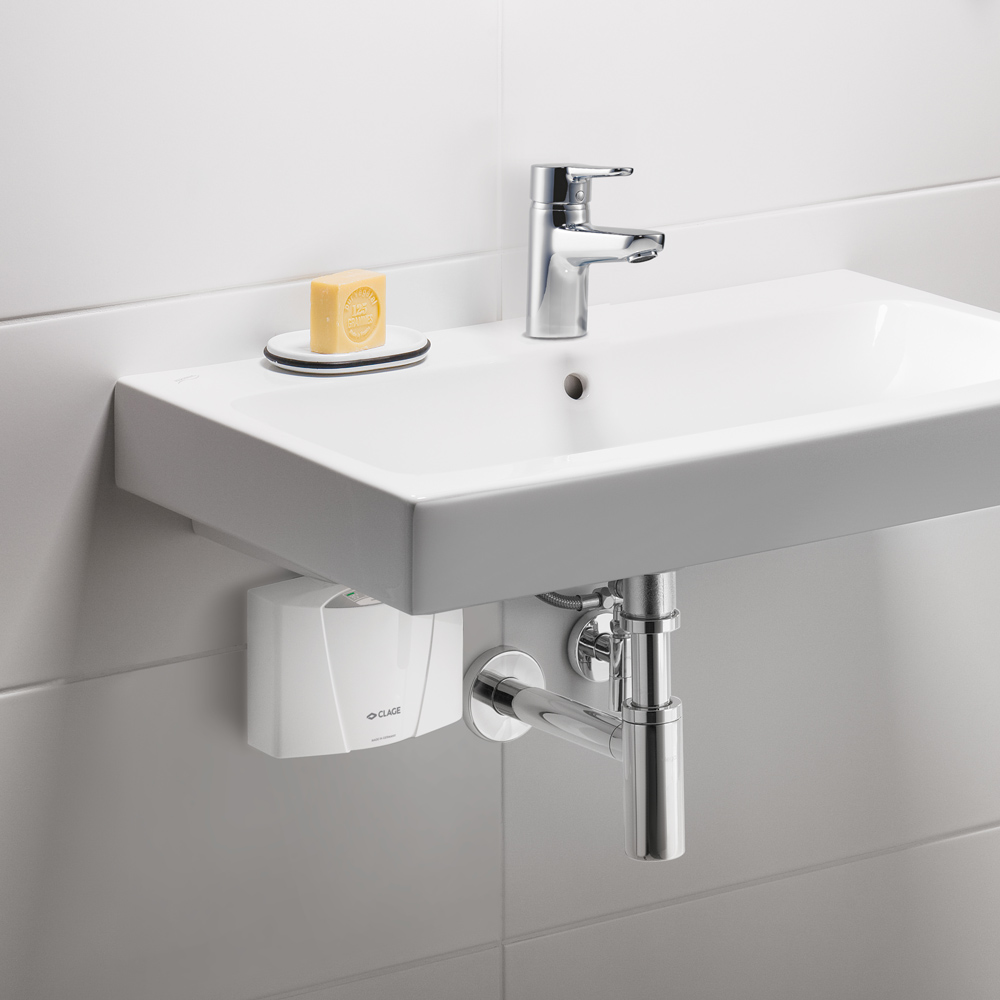

  1. Wash hand basin <nobr>(e.g. guest toilet)</nobr>

    Wash hand basin (e.g. guest toilet)

  2. Staff kitchen

    Staff kitchen

Smart energy efficiency.

The top-of-the-range device among the small instantaneous water heaters convinces with the best functionality and sophisticated design. Well designed, the small appliance fits discreetly into any washbasin situation.

Awards E-mini instant water heater MCX
  • Electronically controlled instant water heater with a compact design for energy-efficient hot water supply of a sink or a staff kitchen
  • The heating output is electronically controlled. This provides an ideal hot water temperature without the need to add cold water at the tap.

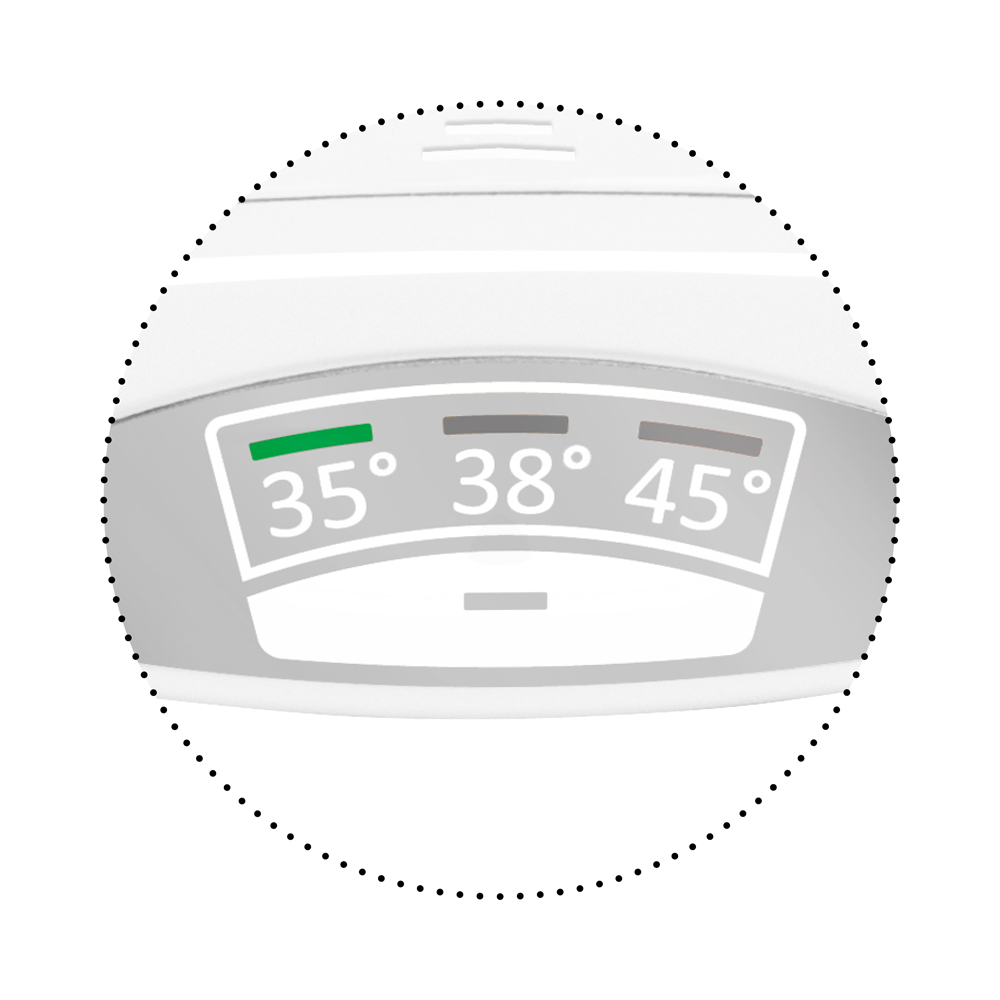

  • Touch button controls with colour LEDs to set the outlet temperature to 35 °C, 38 °C or max. 45 °C.
  • Connection kit (T-piece and flexible pressure hose) for an angle valve is included
  • Unvented design
  • Remote control module available as an accessory: FX wireless remote control
  • Dimensions (height × width × depth): 13.5 × 18.6 × 8.7 cm

Technical data

>

Data. Values. Facts.



















E-mini instant water heater MCX 3 E-mini instant water heater MCX 4 E-mini instant water heater MCX 6
Wash hand basin <nobr>(e.g. guest toilet)</nobr> Wash hand basin <nobr>(e.g. guest toilet)</nobr> Wash hand basin <nobr>(e.g. guest toilet)</nobr> Staff kitchen
MCX 3 MCX 4 MCX 6
Part number
Nominal power rating [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 25 K 1) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 2) [l/min]
Supply voltage [1~ / N / PE 220–240 V AC] with plug
Supply voltage [1~ / N / PE 220–240 V AC] permanent connection
Supply voltage [2~ / PE 400 V AC] permanent connection
Nominal current [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Solar-ready 3)
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
1500-15003 1500-15004 1500-15006
3.5 4.4 5.7
1 (10) 1 (10) 1 (10)
G ⅜" G ⅜" G ⅜"
2.0 2.5 3.3
1.2 1.5 1.5
2.0 2.5 3.3



15 19 25
1.5 2.5 4.0
70 70 70
IP 25 IP 25 IP 25
1100 800 800
1.5 1.5 1.5

1) Temperature increase e.g. from 15 °C to 40 °C

2) Limited flow amount for optimal temperature increase by water flow adjustment

3) Suitable for reheating

Downloads

>

Media Title Date Size
Operating and Installation Booklet Operating and Installation Booklet.pdf 01.01.2021 759 kB
> download

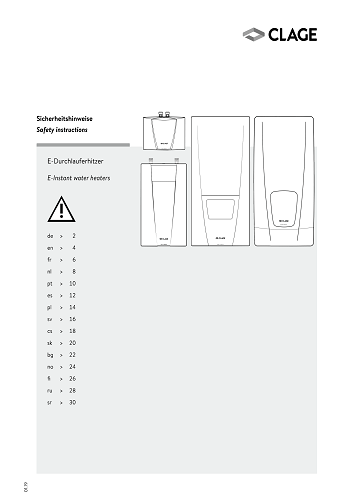

Safety Instructions Safety Instructions.pdf 01.01.2021 6,7 MB
> download

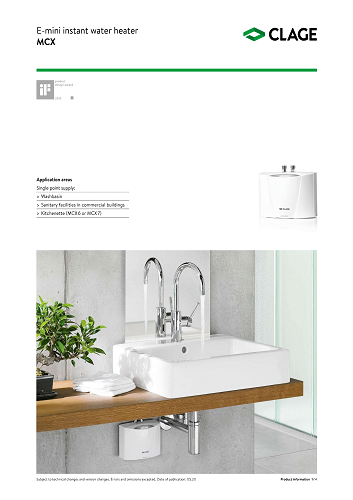

Technical Data Sheet Technical Data Sheet.pdf 01.01.2021 759 kB
> download

Interesting features.

  1. Smart Control-ready

    Smart Control-ready

  2. Remote control (optional)

    Remote control (optional)

  3. Solar-compatible, suitable for reheating

    Solar-compatible, suitable for reheating
