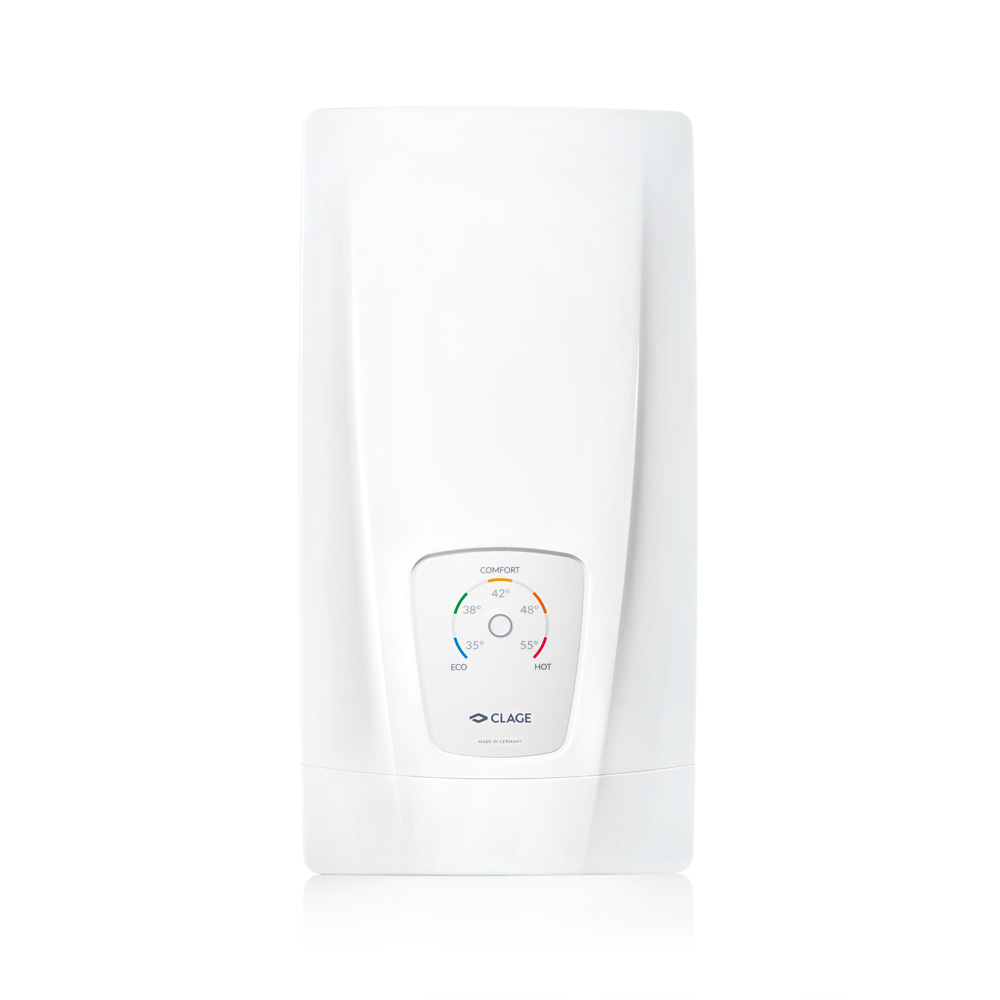

E-comfort instant water heater
DCX Next

Energy efficiency class A

(Scale: A+ to F)

DCX Next: 18/21/24/27 kW, 400 V

This is where the DCX Next is used.

Handwashbasin
Shower
Bath tub
Kitchen sink

Saving energy in the bathroom is that easy!

New product

The electronic E-comfort instant water heater DCX Next is designed for easy operation. One of the five typical hot water temperatures can be selected using the sensor button. Each temperature is indicated by an easily understandable colour display.

Electronically controlled instantaneous water heater with simple operating concept
One-button control panel for quick and easy temperature selection in five levels: 35 °C, 38 °C, 42 °C, 48 °C and 55 °C
Electronic safety system with air bubble detection, temperature and pressure shut-off
Temperature stable up to the power limit. TWIN TEMPERATURE Control TTC^® ensures precise temperature control to the degree, even with fluctuations in water pressure.
With Multiple Power System MPS^® the maximum power consumption is determined at installation: 18, 21, 24 or 27 kW, 400 V
Suitable for water-saving taps due to particularly low switch-on water quantity from 1.5 l/min thanks to innovative water flow technology
Dimensions (height × width × depth): 46.8 × 23.9 × 9.6 cm

Technical data

Data. Values. Facts.



DCX Next

Part number

Nominal power rating ¹⁾ (variably adjustable due to MPS) [kW]

Permissible operating pressure [MPa (bar)]

Water connections (thread connections)

Hot water output at Δt = 28 K ²⁾ [l/min]

Switch-on flow rate [l/min]

Maximum flow rate ³⁾ [l/min]

Supply voltage [3~ / PE 380-415 V AC] permanent connection

Supply voltage [3~ / PE 400 V AC] permanent connection

Nominal current [A]

Required cable diameter ⁴⁾ [mm²]

Maximum inlet temperature [°C]

Protection class

Specific water resistance at 15 °C [Ωcm] ≥

Weight filled with water [kg], approx.

3200-36300
18	21	24	27
1 (10)	1 (10)	1 (10)	1 (10)
G ½"	G ½"	G ½"	G ½"
9.2	10.7	12.3	13.8
1.5	1.5	1.5	1.5
8.0	8.0	8.0	8.0


26	30	35	39
4.0	4.0	6.0	6.0
30	30	30	30
IP 25	IP 25	IP 25	IP 25
1100	1100	1100	1100
4.2	4.2	4.2	4.2

1) The selected power rating determines the values of nominal current, cable diameter and hot water output

2) Temperature increase e.g. from 12 °C to 40 °C, mixed water

3) Limited flow amount for optimal temperature increase

4) Depending on the selected power rating

Downloads

Media	Title	Date	Size
Operating and Installation Booklet.pdf	Operating and Installation Booklet.pdf	01.01.2021	759 kB > download
Quick Guide	Quick Guide.pdf	01.01.2021	6,7 MB > download

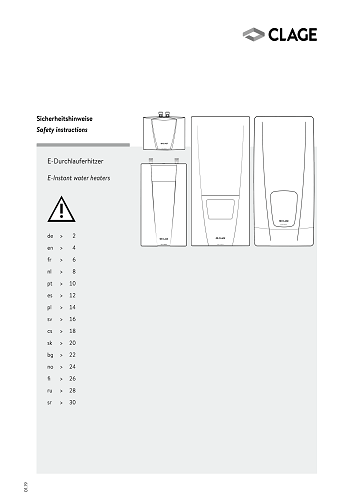

Safety Instructions	Safety Instructions.pdf	01.01.2021	6,7 MB > download
