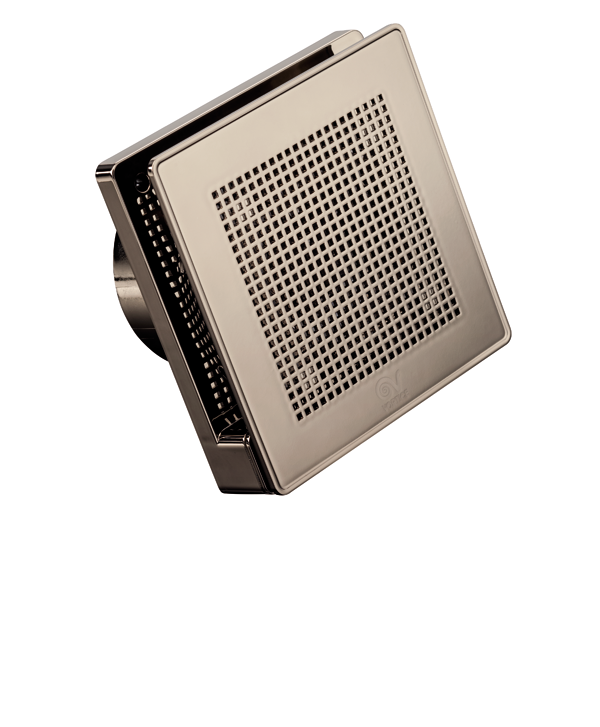

Punto Evo Gold

Wall/Window Axial Fan LONG LIFE 30.000 h

  • ME 100/4" LL ORO
  • GIALLO-YELLOW GOLD
  • ROSA-PINK GOLD
  • NERO-BLACK GOLD
  • BIANCO-WHITE GOLD

This is where the Punto Evo Gold is used.

  1. Wash hand basin <nobr>(e.g. guest toilet)</nobr>

    Toilet Areas

  2. Shower

    Showers

  3. Staff kitchen

    Pantry

Description & Certifications.

Wall, ceiling and false-ceiling axial fans, ideal for ventilation in small and medium-size residential and commercial premises, also in the presence of medium length exhaust ducts, characterised by a metallic mirror finish.

Key Features

  • > Silver, gold, copper and black metallic mirror finish
  • > Very low noise emissions for high comfort of use.
  • > Very high (IP45) protection rating from dust and water jets, exceeding the requirements of use in Zone 1 bathroom installations.
  • > 2-speed motors designed to ensure low consumption.
  • > Sealed non-return valves to prevent unwanted inflows of air and bad odours when the device is switched of.
  • > Reduced exhaust sleeve depth, compatible with installation immediately upstream of a 90° bend.

Version

  • > 4 models, with nominal diameter 100mm, also in the versions with timer.

  • IMQ IMQ
  • CE CE
  • IMQ Performance IMQ Performance
  • C Tick Mark C Tick Mark
  • EAC EAC
  • G-Mark G-Mark

Technical features

  • > Shock-proof plastic resin (ABS) structure with metallic mirror finish obtained through advanced technologies providing attractive and distinctive style, durability and wear resistance.
  • > Shaded pole motors, heat protected, 2-speed with shafts mounted on ball bearings to guarantee long lasting (at least 30,000 h) continuous service at the maximum plate temperature. Speed adjustment using Vortice accessory devices.
  • > Helico-centrifugal impellers optimised to ensure high performance, low consumption and low noise emissions, when coupled with underlying flow conditioners.
  • > Air-tight butterfly valve on the delivery spigots, to prevent unwanted inflows of air and bad odours when the device is switched of.
  • > Safety certified by third party body (IMQ)
  • > Protection rating from dust and water: IP45.
  • > Class of electric isolation: II (earthing not required)

Technical data

>
























Absorbed Current max (A)
Frequency (Hz)
Insulation Class
IP
Max ambient temperature for continuous operation (°C)
Max absorbed Current at min. Speed (A)
Max absorbed Current at max. Speed (A)
Max absorbed Power at max. Speed (W)
Nominal Diameter (mm)
Voltage (V)
Weight (Kg)

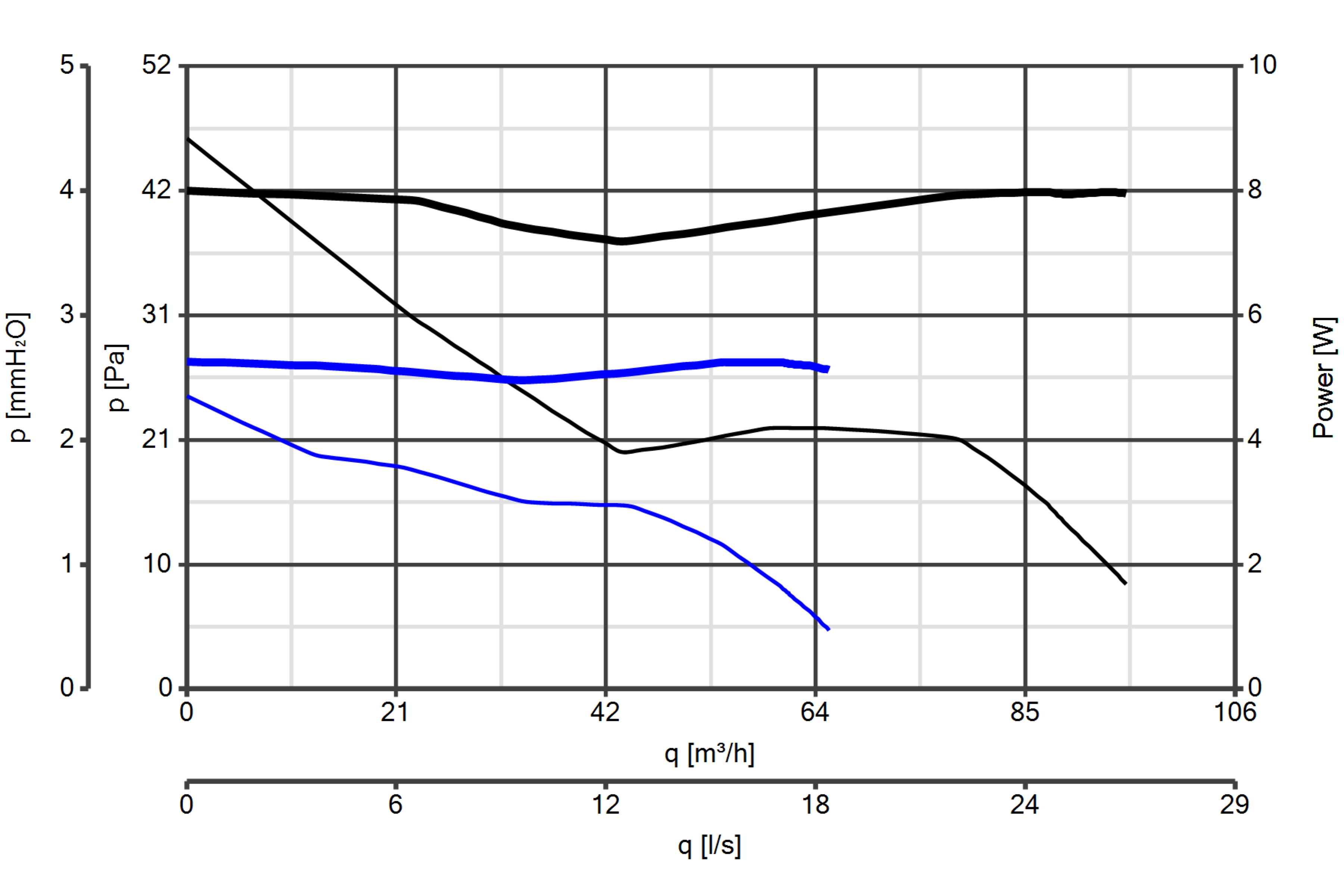

Delivery 1st speed (l/s)
Delivery 1st speed (m³/h)
Max delivery at max speed (l/s)
Max delivery at max speed (m³/h)
Pressure - 1st speed (mmH20)
Pressure - 1st speed (Pa)
Pressure max - max speed (mmH20)
Pressure max - max speed (Pa)
RPM max
RPM min
Sound power Lw [dB(A)] - min speed
Sound power Lw [dB(A)] - max speed
Sound pressure level Lp in free field [dB(A)] 3 m max speed
Sound pressure level Lp in free field [dB(A)] 3 m min speed
5
50
II°
45
50
0,052
0,039
9
100
230
0,6
18,1
65
26,4
95
2,5
24,52
4,7
46,09
2240
1700
41,3
47,4
26,9
20,8
    Model
    ME 100/4" LL ORO
  • Size A (mm)
    159
  • Size B (mm)
    159
  • Size C (mm)
    116,5
  • Size D (mm)
    ø 98
  • Size E (mm)
    61,5
  • Size F (mm)
    40,5
  • Size G (mm)
    132
  • Size H (mm)
    132
  • Size L (mm)
    ø 3,5
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -9,9
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -23,2
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    -2,2
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    93
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    8,1
  • Sound power level LWA [dB(A)]
    68
  • Reference flow rate [m3/s]
    0,0181
  • Reference pressure difference [Pa]
    22
  • SPI [W/(m3/h)]
    0,11828
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    163
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632

Downloads

>

Media Title Date Size

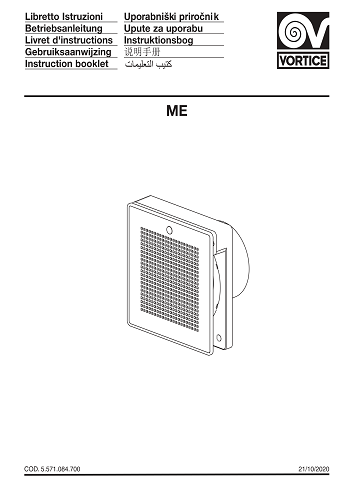

Punto Evo Instruction Booklet Instruction Booklet.pdf 01.01.2021 759 kB
> download

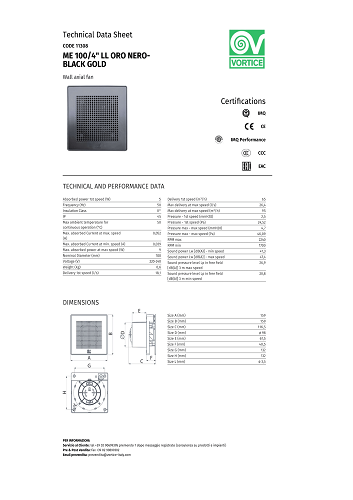

Punto Evo Black Gold Technical Data Sheet Technical Data Sheet.pdf 01.01.2021 6,7 MB
> download
Punto Evo Pink Gold Technical Data Sheet Technical Data Sheet.pdf 01.01.2021 6,7 MB
> download

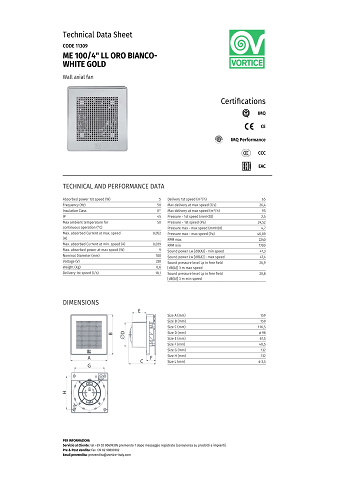

Punto Evo White Gold Technical Data Sheet Technical Data Sheet.pdf 01.01.2021 6,7 MB
> download
Punto Evo Yellow Gold Technical Data Sheet Technical Data Sheet.pdf 01.01.2021 6,7 MB
> download

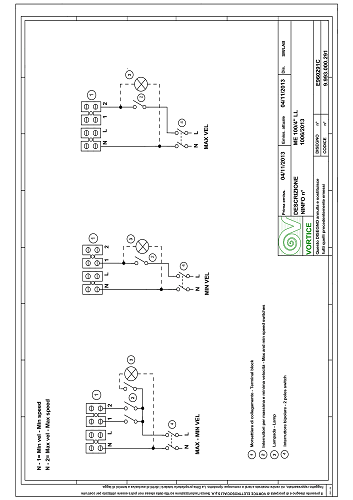

Punto Evo Gold Wiring Diagram Wiring Diagram.pdf 01.01.2021 6,7 MB
