Punto Evo Flexo

Wall/Window Axial Fan LONG LIFE 30.000 h

  • MEX 100/4" LL 1S
  • MEX 120/5" LL 1S

This is where the Punto Evo Flexo is used.

  1. Wash hand basin <nobr>(e.g. guest toilet)</nobr>

    Toilet Areas

  2. Shower

    Showers

  3. Staff kitchen

    Pantry

Description & Certifications.

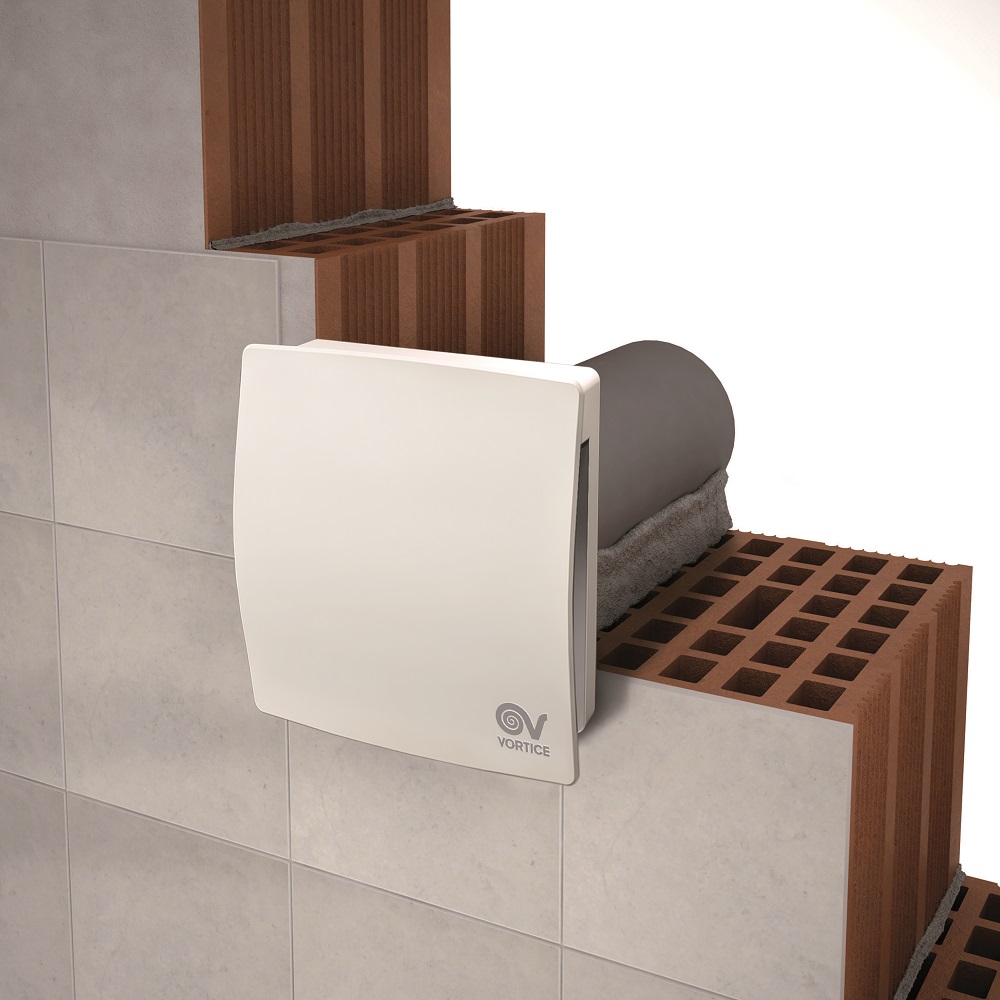

Wall, ceiling and false-ceiling axial fans, ideal for ventilation in small and mediumsize residential and commercial premises, also in the presence of medium length exhaust ducts.

Key Features

  • > Very low noise emissions for high comfort of use.
  • > Very high (IP45) protection rating from dust and water jets, Suitable for bathroom installation.
  • > Modern design, in line with the latest trends, which combines aesthetic elegance with easy product cleaning and maintenance.
  • > Sealed non-return valves to prevent unwanted inflows of air and bad odours when the device is switched off.
  • > Reduced exhaust sleeve depth, compatible with installation immediately upstream of a 90° bend.
  • > Low consumption

Version

  • > 2 models, with nominal diameter 100 and 120 mm.

  • IMQ IMQ
  • CE CE
  • EAC EAC
  • G-Mark G-Mark

Technical features

  • > White, shock-proof, plastic resin (ABS) panels, prevents ageing caused by exposure to sunlight (“UV resistant”).
  • > Shaded pole motors, heat protected, with shafts mounted on ball bearings to guarantee long lasting (at least 30,000 h) continuous service at the maximum plate temperature. Speed adjustment using Vortice accessory devices.

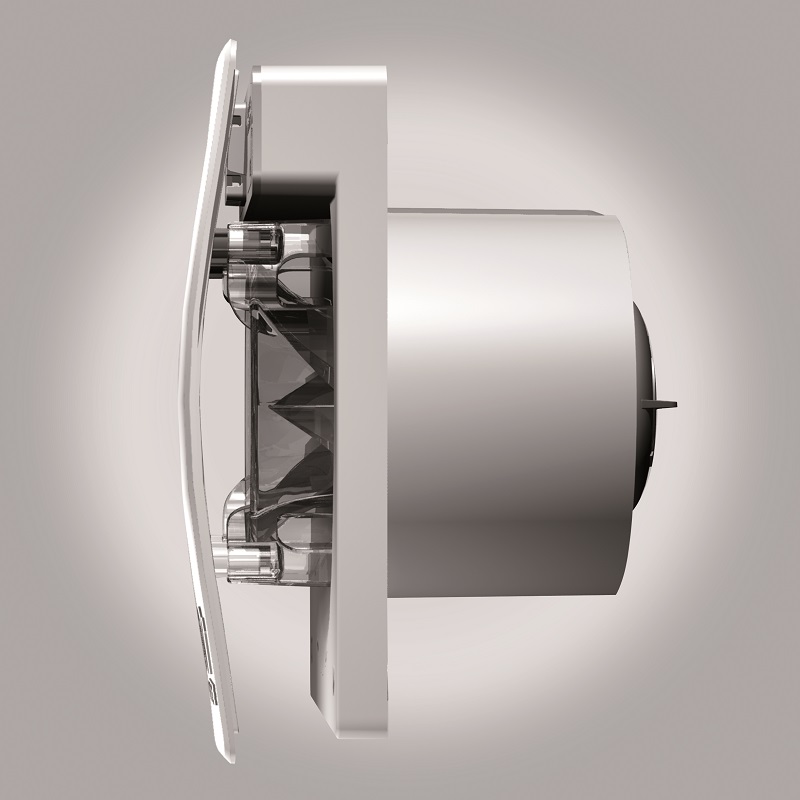

  • > Helico-centrifugal impellers optimised to ensure high performance, low consumption and low noise emissions, when coupled with underlying flow conditioners.
  • > Air-tight butterfly valve on the delivery spigots, to prevent unwanted inflows of air and bad odours when the device is switched off.
  • > Equipped with electronic timer for automatic product switch-off after a pre-fixed period of time, which can be set in the installation phase, from 3’-20’(default setting 3’).
  • > Performance and safety certified by third party body (IMQ)
  • > Protection rating from dust and water: IP45.
  • > Class of electric isolation: II (earthing not required).


Technical data

>
























MEX 100/4" LL 1S MEX 125/5" LL 1S
Frequency (Hz)
Insulation Class
IP
Max ambient temperature for continuous operation (°C)
Max absorbed Current at max. Speed (A)
Max absorbed Power at max. Speed (W)
Nominal Diameter (mm)
Voltage (V)
Weight (Kg)
Max delivery at max speed (l/s)
Max delivery at max speed (m³/h)
Pressure - 1st speed (mmH20)
Pressure - 1st speed (Pa)
RPM max
Sound power Lw [dB(A)] - max speed
Sound pressure level Lp in free field [dB(A)] 3 m max speed
50 50
II° II°
45 45
50 50
0,052 0,095
9 13
100 120
230 220-240
0,6 0,77
25 48,6
90 175
4 5
39,23 49,04
2175 2075
47,4 52,8
26,9 32,3
  • Model
    MEX 100/4" LL 1S
    MEX 120/5" LL 1S
  • Size A (mm)
    173
    193
  • Size B (mm)
    173
    193
  • Size C (mm)
    126
    138
  • Size D (mm)
    Ø 98
    Ø 119
  • Size E (mm)
    61,5
    71
  • Size F (mm)
    50
    53
  • Size G (mm)
    132
    152
  • Size H (mm)
    132
    152
  • Size L (mm)
    Ø 3,5
    Ø 3,5
img_missing
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -10,0
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -23,4
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    -2,4
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    168
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    14,1
  • Sound power level LWA [dB(A)]
    53
  • Reference flow rate [m3/s]
    0,0327
  • Reference pressure difference [Pa]
    19
  • SPI [W/(m3/h)]
    0,11480
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    158
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632
